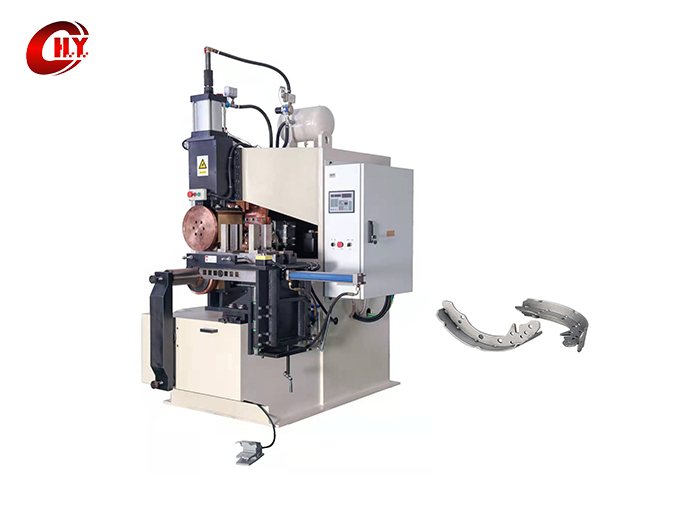

Welding Machine for P.V. Brake Shoe

  • Product Introduction:

    This P.V. brake shoe welding machine is suitable for single-wed welding of P.V. brake shoes. It is a new type of special welding machine designed and manufactured specifically for P.V. brake shoe production according to the welding technical requirements of brake shoes.

  • Advantages:
    Adopts touch screen digital input to control operation settings, making the operation simple and convenient.Machine accessories (Panel racks, contact tips, servo drives, clamping fixture, pressure welding cylinder) all adopt products from world-famous brands. Equipped the precision planetary reduction device to improve the positioning accuracy of brake shoe.Adopts the single-chip microcomputer as the main control unit, simple circuit, high integration, and intelligence, which reduces the failure rate and facilitates maintenance.The communication and BCD code control functions can be connected to external control devices such as industrial computers and PLC to realize remote control automation functions, improve work efficiency, and can store 16 sets of welding specifications for users to call out preset settings.The output frequency of intermediate frequency controller is 1KHZ, and the current adjustment is fast and accurate, which can’t be achieved by ordinary industrial frequency welding machines.

Product Introduction

This device has the advantages of high control precision, stable output current, small influence of inductive reactance, beautiful welding appearance, and little spatter.

This device has single/continuous spot welding functions and can perform multi-specification welding in continuous cycles.

Three-phase power input, balanced load, power factor close to 1, reducing power consumption and saving energy.

The conductive crossbeam is made of silver-copper for conduction, has the features of good conductivity, durability, low maintenance rate, and cost savings etc.

The mold clamping adopts the hydraulic system, which ensures stable clamping force, so that the workpiece will not loosen during the welding process.

The cylinder uses the wear-resistant sealing ring and two-stage pressure system, which can enhance the stability of welding and improve the durability of welding cylinder.

The panel rack adopts the handle-type structure, which can be adjusted up, down, forward and backward.

The welding fixture is easy to replace, and the time is short.

Welding speed: 1.5mm thick panels, 4-5 welding points.

Output: about 5000 pieces per 8 hours.

Overall dimensions：2000mm×1700mm×2300mm.

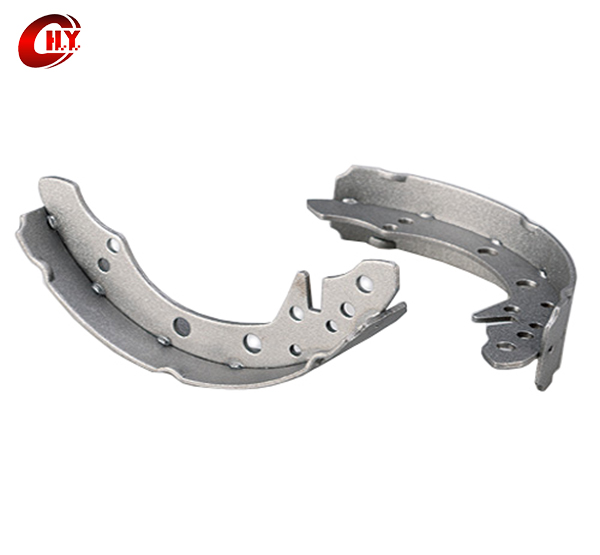

Welding-Machine-for-P.V.-Brake-Shoe03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
