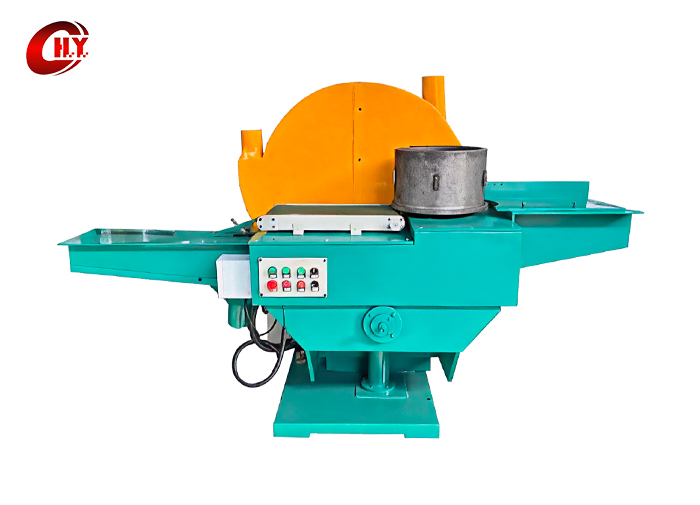

Out-arc Grinding Machine for Brake Linings

  • Product Introduction:

    This outside grinding machine for brake lining is used to the outer-arc grinding process for C.V. brake linings.

  • Advantages:
    This brake lining grinding machine adopts the steel plate and casting iron structure,with good stability, no vibration, three-dimensional adjustable, automatic feeding and discharging. The speed of host frequency is adjustable. Adopting diamond grinding wheel, having features of High precise grinding, Clear and smooth texture, Change fixture quickly and convenient operation. One person can operate 2-3 sets of this machine.

Product Introduction

Grinding Range: Outer Radius: R140-R260mm

Width of brake lining: 80mm-260mm

Diameter of Grinding Wheel: Ф800mm (Diamond grinding wheel)

Dynamic frequency: 15kw

Line speed: 60m /s

Grinding fixture is frequency control, Power is 0.75kw.

Per shift output: 3000-8000pieces /8 hours

Dimensions: About 1600mm *2500mm *1600mm

Total weight: About 2600 kg

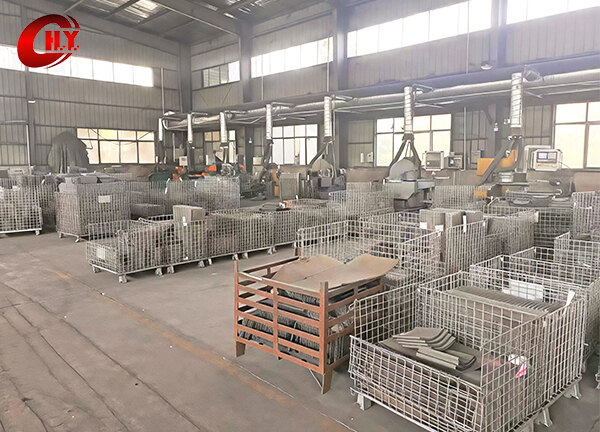

Out-arc-Grinding-Machine-for-Brake-Linings03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
