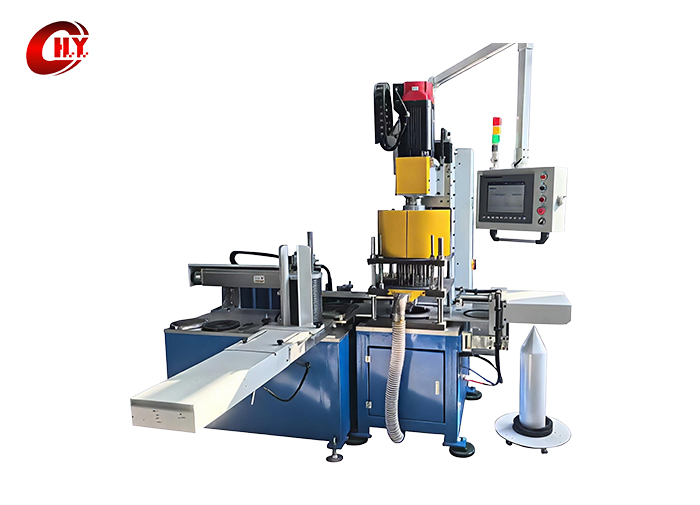

Multi-hole Clutch Facing Drilling Machine

  • Product Introduction:

    This automatic clutch facing drilling machine is suitable for drilling process for passenger cars, trucks and construction machinery. The through holes, stepped holes and counterbore holes on the facing plate can be drilled in one time.

  • Advantages:
    Structure Composition: Consists of numerical control sliding table, multi-axis power head, guide plate and template, automatic groove alignment mechanism, feeding device, dust collection device, and CNC control system.Advantages: High precision and good consistency of hole positions; Extremely high efficiency, synchronous drilling by multi-axis and multi-head drill bits, suitable for mass production; Automatic loading and unloading, one person can operate multiple machines, which greatly reduces labor intensity and labor costs.

Product Introduction

Spindle Speed Range: 100~2000 r.

Machine Controller: New Generation CNC System.

Spindle Power: 7.5KW Spindle Motor.

Servo Motor: Servo Drive Kit.

Drilling Size Range:Maximum outer diameter of product: 325mm.

Minimum outer diameter: 180mm.

Drilling Power Head: 36-axis.

Drilling Capacity: 8 hours, about 2000 pieces.

Feeding: Automatic feeding and automatic unloading.

Total Power: 9KW.

Size: 2500*2000*2500mm (L*W*H).

Weight: about 1500KG.

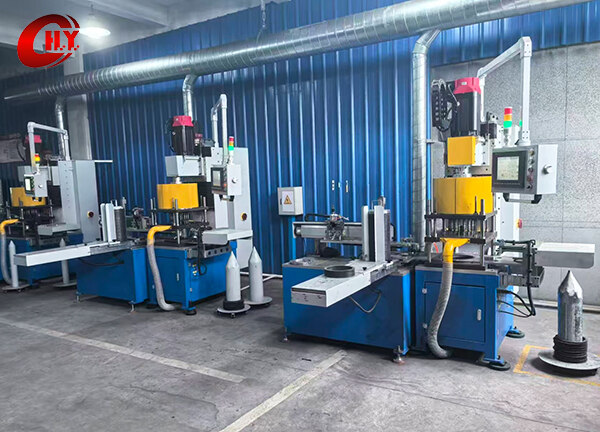

CNC-Drilling-Machine-for-Clutch-Facing12

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile clutch facing production line machine.
  • 02Automatic clutch facing processing machine.
  • 03Automatic clutch facing manufacturing machine.
  • 04Auto clutch facing production line machine.
  • 05Automatic clutch facing producing machine.
  • 06Automatic clutch facing making machine.
  • 07CNC clutch plate drilling machine.
  • 08Automatic clutch plate drilling machine.
