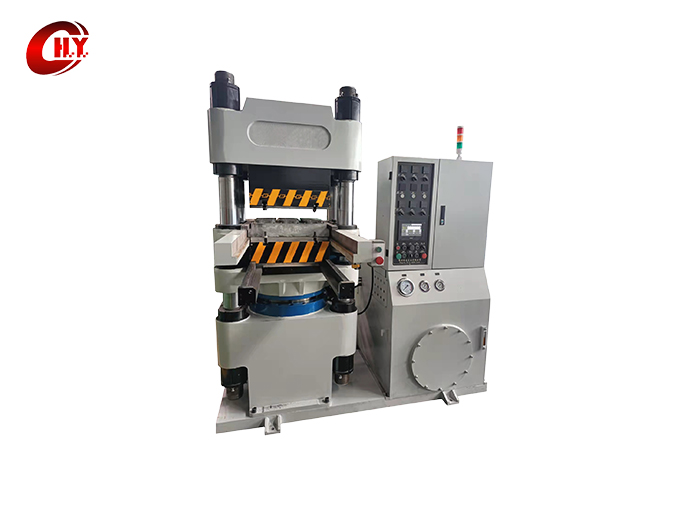

Hydraulic Pressing Machine for P.V. Brake Pad

  • Product Introduction:

    This automatic pressing machine is suitable for hot-press forming process of various P.C. or C.V. brake pads,it’s the main production line making machine for brake pads.

  • Advantages:
    Has the features of rapid idle stroke, slow pressing speed, stable and reliable operation etc. The main hydraulic valves and hydraulic seals adopt the international famous brands; The electrical system adopts touch screen combined with PLC program control; Hydraulic pressure and flow are controlled by proportional valves, and it’s equipped with safety photoelectric protection device etc.

Product Introduction

Nominal force: 3000KN

Max. Working Pressure of Hydraulic: 20MPa

Operation Mode: Single-station Push-out Structure

Max. Working Stroke of Main Cylinder: 250mm

Quick Rising speed: 45mm/s

Pressing Speed: 3-5mm/s

The height from workbench to ground: 1000mm

Heating plate size: 500mm×600mm×80mm (W*L*H)

Motor power: 7.5KW

Oil pump displacement: 32ml/r+16ml/r

Heating power: 12.8KW

Distance between trapezoidal grooves: 320mm

Main cylinder diameter: 450mm

Max. opening size: 300mm

Total weight: 6.6T

Overall dimensions: 2300*2100*2350mm

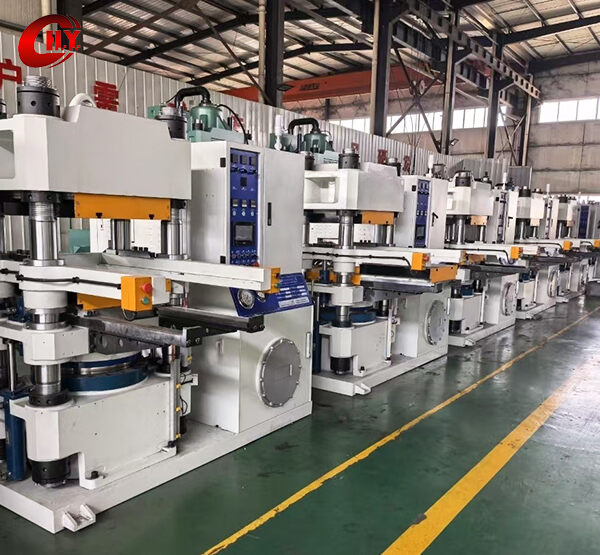

Hydraulic-Pressing-Machine-for-P.V.-Brake-Pad05

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
